Lung Ventilator

Get a Price/Quote

Product Details:

Power Source Electric with battery backup
Weight Approximately 15 kg
Usage & Applications Assists or replaces spontaneous breathing in patients with respiratory failure
Phase Single Phase
Size Standard (Refer to dimensions below)
Fragrance Odorless
Speed Adjustable breath rate from 2 to 80 BPM
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Lung Ventilator Price And Quantity

Battery Backup Inbuilt rechargeable battery, up to 2 hours operation
Maximum Patient Weight Up to 200 kg
Modes Supported Assist/Control (A/C), Synchronized Intermittent Mandatory Ventilation (SIMV), Spontaneous, CPAP, BiPAP
PEEP Range 0-20 cm H2O
Display 7-inch Color TFT LCD Touchscreen
Alarm System Visual and Audible Alarms for High/Low Pressure, Apnea, Power Failure
Noise Level <60 dB(A)
Tidal Volume Range 50 ml to 2000 ml
Humidification Integrated Heated Humidifier
Accessories Included Patient Circuit, Power Cable, User Manual
Safety Medical Electrical Safety Certified (IEC 60601-1)
Oxygen Concentration Setting 21% to 100% FiO2 Adjustable

Lung Ventilator Product Specifications

Fragrance Odorless
Size Standard (Refer to dimensions below)
Phase Single Phase
Function Mechanical Ventilation Support for Lungs
Power Source Electric with battery backup
Weight Approximately 15 kg
Application Critical Care, Emergency, ICU, Hospital
Usage & Applications Assists or replaces spontaneous breathing in patients with respiratory failure
Handle Type Portable with side handles
Capacity Configurable for Adult & Pediatric Use
Voltage 220V AC, 50Hz
Material Medical Grade Plastic and Metal
Technique Pressure & Volume Controlled Modes
Automation Grade Fully Automatic
Color White & Grey
Dimension (L*W*H) Approximately 60 cm x 45 cm x 45 cm
Product Type Lung Ventilator
Speed Adjustable breath rate from 2 to 80 BPM

Battery Backup Inbuilt rechargeable battery, up to 2 hours operation
Maximum Patient Weight Up to 200 kg
Modes Supported Assist/Control (A/C), Synchronized Intermittent Mandatory Ventilation (SIMV), Spontaneous, CPAP, BiPAP
PEEP Range 0-20 cm H2O
Display 7-inch Color TFT LCD Touchscreen
Alarm System Visual and Audible Alarms for High/Low Pressure, Apnea, Power Failure
Noise Level <60 dB(A)
Tidal Volume Range 50 ml to 2000 ml
Humidification Integrated Heated Humidifier
Accessories Included Patient Circuit, Power Cable, User Manual
Safety Medical Electrical Safety Certified (IEC 60601-1)
Oxygen Concentration Setting 21% to 100% FiO2 Adjustable

Lung Ventilator Trade Information

Main Domestic Market All India

Product Description

Discover the Ace Lung Ventilator with a pristine 7-inch Color TFT LCD touchscreen, trusted by popular hospitals for advanced mechanical ventilation. Equipped with visual and audible alarm systems, this splendid device ensures patient safety through high and low pressure, apnea, and power failure alerts. Offering Assist/Control, SIMV, Spontaneous, CPAP, and BiPAP modes, it suits both adults and pediatric patients up to 200 kg. Purchase online or via our distributor network in India for assured quality, safety certifications, and pristine support.

Type of Usage & Features - Versatile Critical Care Support

The Lung Ventilator is engineered for critical care, emergency, ICU, and hospital settings. Suitable for both adult and pediatric patients, it delivers advanced mechanical lung support in spontaneous, pressure, and volume-controlled modes. Its fully automatic design is integrated with an inbuilt rechargeable battery, color display, heated humidifier, and a robust alarm system for comprehensive monitoring. The ventilator's portability and side handles enable swift mobility, making it ideal for shifting between bedsides or units in demanding situations.

Sample Availability, Export Markets & Delivery Options

We offer sample Lung Ventilators for evaluation, ensuring you assess their ace performance before purchase. Our pristine devices see high demand in India and major export markets abroad. Goods transport is managed by efficient transportation networks, guaranteeing safe and timely delivery. Expect delivery within a splendid 7 to 15 business days after order confirmation. Whether you're a distributor, supplier, exporter, or healthcare facility, we ensure that your equipment reaches you with reliability and professionalism.

FAQ's of Lung Ventilator:

Q: How does the Lung Ventilator support different patient types?

A: The ventilator is configurable for both adult and pediatric patients, with adjustable settings such as tidal volume, FiO2 concentration, and modes tailored for diverse clinical needs.

Q: What are the main benefits of the Lung Ventilator's alarm system?

A: The alarm system provides visual and audible signals for high/low pressure, apnea, and power failure, ensuring continuous, safe operation and rapid response to emergencies.

Q: Where can I buy the Lung Ventilator online?

A: You can purchase the Lung Ventilator through our official website or connect with authorized distributors, exporters, and suppliers across India and export markets.

Q: What is the process of installing the Lung Ventilator upon delivery?

A: Installation is straightforward-follow the user manual included with each device for setup. Our support team is also available to guide you through safe installation and initial operation.

Q: When is it suitable to use this ventilator in a hospital?

A: This ventilator is ideal for use in ICU, critical care, or emergency settings, particularly for patients with respiratory failure needing assisted or fully supported breathing.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Hospital & Medical Supplies' category

Disposable Nebulizer Kit Fragrance : Odorless Size : Adult / Pediatric Function : Aerosol Therapy for medication administration Application : Respiratory Therapy / Medication Delivery Usage & Applications : Hospital, Clinic, Homecare for inhalation therapy Weight : Approx. 2535 grams Handle Type : Other, Elastic Head Strap for mask Capacity : 68 ml chamber Material : Medical grade PVC and Polypropylene Technique : Jet Nebulization Shelf Life : 5 Years (unopened) Color : Transparent (Mask: Green or White as per availability) Automation Grade : Manual Product Type : Disposable Nebulizer Kit Dimension (L*W*H) : Chamber: approx. 7 x 5 x 3 cm (varies per model) Speed : Nebulization rate: 0.2 0.5 ml/min Power Source : External compressed air/oxygen supply Voltage : Not Applicable (operates passively with oxygen/air supply)

Send Inquiry

Bipap Machine Fragrance : Odorless Size : Compact Function : Bilevel Positive Airway Pressure Application : Respiratory therapy Usage & Applications : Hospital, Clinic, Homecare Weight : Approx 1.4 kg Handle Type : Other, Integrated Handle Capacity : Up to 24hour continuous use Material : Medicalgrade plastic Technique : Pressure Cycling Shelf Life : 5 years Color : White and Blue Automation Grade : Automatic Product Type : Bipap Machine Dimension (L*W*H) : 21.2 x 14.2 x 8.7 cm Speed : Variable Power Source : Electric Voltage : 100240V AC

Send Inquiry

Dispensing Syringes for Sale with Stainless Steel Syringe Needles Fragrance : Odorless Size : Available in 5 ml, 10 ml, 20 ml, and 30 ml capacities Function : Controlled dispensing of liquids or pastes Application : Precise fluid dispensing, laboratory use, industrial adhesive application Usage & Applications : Suitable for medical, laboratory, electronics, and industrial applications Weight : Approximately 2035 grams (varies by size) Handle Type : Other, Plungeroperated Capacity : 5 ml, 10 ml, 20 ml, 30 ml Material : Medicalgrade polypropylene barrel and stainless steel needle Technique : Precision injection molding Shelf Life : 5 years when stored properly Color : Transparent barrel with black plunger and clear needle hub Automation Grade : Manual Product Type : Dispensing Syringes with Stainless Steel Needles Dimension (L*W*H) : Length varies according to capacity: 12 cm to 18 cm; diameter: 2 cm to 3.5 cm Speed : Manual operation

Send Inquiry

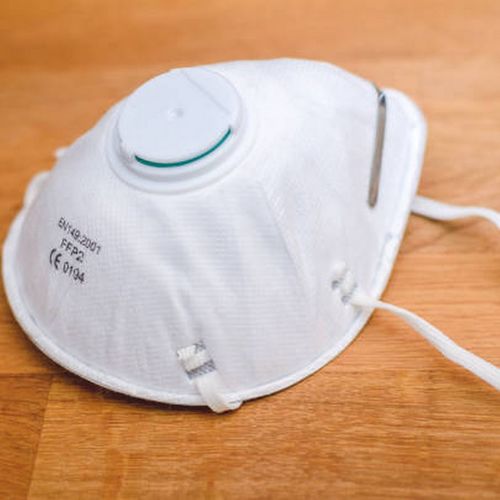

Buy Face Masks | N95 / FFP2 / FFP3 Fragrance : Odorless Size : Standard Adult, Adjustable Function : Air Filtration, Dust and Virus Protection Application : Personal Protection, Healthcare, Industrial Safety Usage & Applications : Hospitals, Laboratories, Construction Sites, Public Spaces Weight : 1525 gm each Handle Type : Other, Earloop / Headband Capacity : Single Use Material : Nonwoven Fabric, Melt Blown Filter Technique : Ultrasonic Sealing Shelf Life : 3 Years Color : White / Grey / Blue Automation Grade : Manual Product Type : N95 / FFP2 / FFP3 Face Mask Dimension (L*W*H) : 17.5 cm x 9.5 cm (approx.)
